Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | RINO |
| Certification: | CE |
| Model Number: | HP-LM1200 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiation |
| Packaging Details: | Wrapped with film or in wooden case |
| Delivery Time: | 40-60 Working Days After Deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Set/Month |
|
Detail Information |
|||
| Name: | 1200 Stainless Steel Wallboard Carton Box Flexo Printing Machine Lead Edge Feeding With Slotter | Grade: | Automatic |
|---|---|---|---|
| Weight: | 30000kgs | Voltage: | 380V |
| Slotting Precision: | ±1.5mm | Tinted Precision: | ±0.5mm |
| Total Power: | 30KW | Design Speed: | 200Pcs/Min |
| Highlight: | Wallboard Carton Box Flexo Printing Machine,1200mm Carton Box Flexo Printing Machine |
||
Product Description

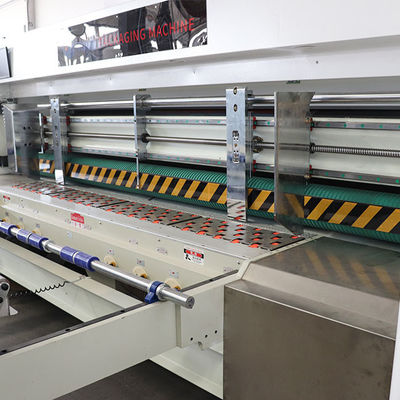

1200 Stainless Steel Wallboard Carton Box Flexo Printing Machine Lead Edge Feeding With Slotter
Carton Box Flexo Printing Machine Working Principle
When the carton box printing machine works, the text and images to be printed are first made into a printing plate, which is installed on the printing machine, and then the printing machine is operated by a person to evenly coat the ink on the printing plate where there are text and images, and then directly or indirectly Transfer to corrugated cardboard or carton to reproduce the same printed copy as the printing plate.
Parameter of Carton Flexo Printing Machine
|
Width |
mm |
3000 |
|
Maximum Paper feeding size |
mm |
1200×2800 |
|
Effective printing size |
mm |
1200×2600 |
|
Minimum Paper feeding size |
mm |
350×650 |
|
Thickness of printing plate |
mm |
7.2 |
|
Design speed |
sheets/mi n |
200 |
|
Economic speed |
sheets/mi n |
150-180 |
|
Main motor |
KW |
20 |
|
Total power |
KW |
30-45 |
|
Weight |
T |
15 |
|
Tinted precision |
mm |
±0.5 |
|
Slotting precision |
mm |
±1.5 |
Main units
 |
|
Paper feeding unit
|
|
|
Printing unit
1. The outer diameter is ￠408mm. 2. The surface of the steel pipe is ground and plated with hard chromium. 3. Do balance correction, stable operation. 4. Ratchet fixed reel shaft. 5. Full-page hanging board slot, suitable for 10mm×3mm hanging board.
|
|
|
1. Die roller (lower roller)
1. The outer diameter is480 ㎜ (without die). 2. The surface of cast steel material is ground and plated with hard chromium. 3. Balancing correction to increase running stability. 4. The distance between the fixed screw holes of the knife mold is 100 ㎜×100 ㎜. 5. Applicable knife mold height is 25.4 mm.
|
Packaging&shipping
Factory Show
Operation instruction of high speed flexo printin...
